Wednesday, 24 April 2013

implements OnBackStackChangedListener to display UP icon, automatically by getBackStackEntryCount()

03:52
Last exercise handle UP icon for Fragment navigation in hard code; call setDisplayHomeAsUpEnabled(true) when switch to MyDetailFragment, and call setDisplayHomeAsUpEnabled(false) when switch back to MyListFragment(). In case you have many Fragment Transaction, it's not a good approach to display the UP icon.

Alternatively, we can implements OnBackStackChangedListener, add it in FragmentManager by calling addOnBackStackChangedListener(), and override onBackStackChanged() method to check emptiness of back stack entry by calling getBackStackEntryCount(), then call setDisplayHomeAsUpEnabled() accordingly.

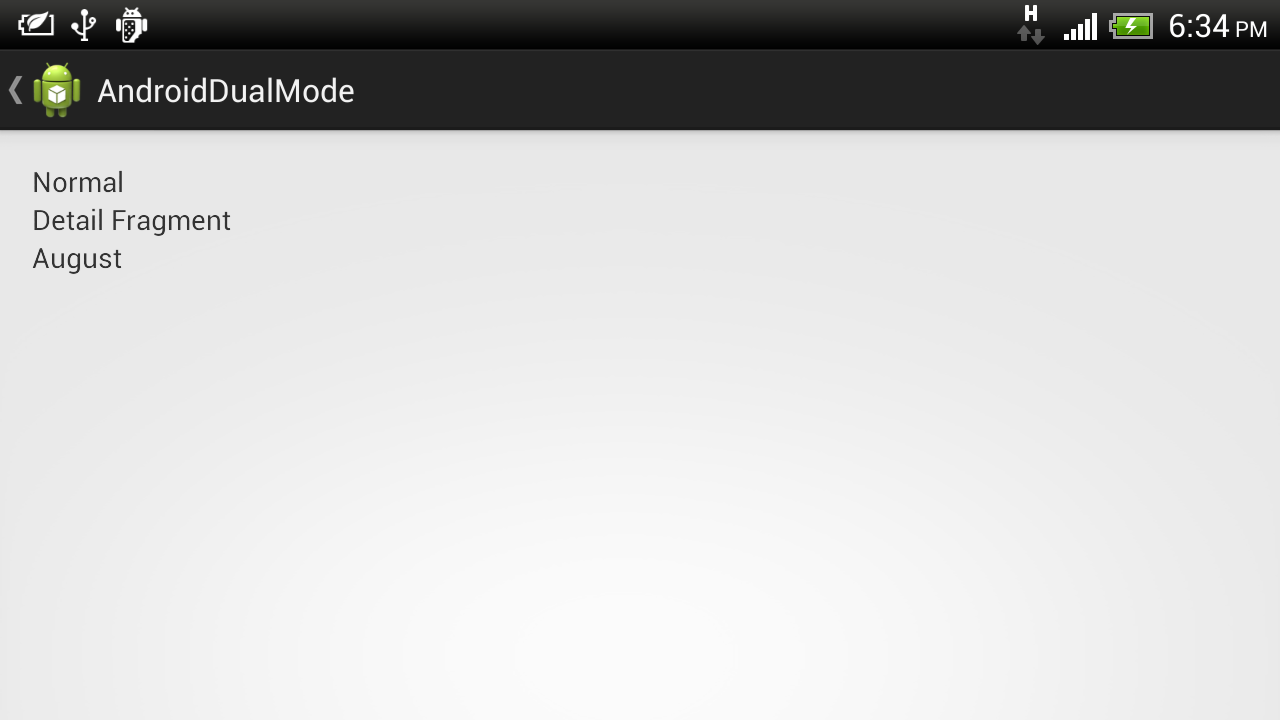

implements OnBackStackChangedListener to display UP icon, automatically by getBackStackEntryCount()


package com.example.androiddualmode;

import android.os.Bundle;
import android.app.Activity;
import android.app.Fragment;
import android.app.FragmentManager.OnBackStackChangedListener;
import android.app.FragmentTransaction;
import android.app.ListFragment;
import android.view.LayoutInflater;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ArrayAdapter;
import android.widget.ListAdapter;
import android.widget.ListView;
import android.widget.TextView;

public class MainActivity extends Activity implements OnBackStackChangedListener{

// if run on phone, isSinglePane = true
// if run on tablet, isSinglePane = false
static boolean isSinglePane;

static String[] month ={
"January", "February", "March", "April",
"May", "June", "July", "August",
"September", "October", "November", "December"};

public static class MyListFragment extends ListFragment {

@Override
public void onActivityCreated(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onActivityCreated(savedInstanceState);

ListAdapter myArrayAdapter =
new ArrayAdapter<String>(
getActivity(), android.R.layout.simple_list_item_1, month);
setListAdapter(myArrayAdapter);

}

@Override
public void onListItemClick(ListView l, View v, int position, long id) {

String clickedDetail = (String)l.getItemAtPosition(position);

if(isSinglePane == true){
/*
* The second fragment not yet loaded.
* Load MyDetailFragment by FragmentTransaction, and pass
* data from current fragment to second fragment via bundle.
*/
MyDetailFragment myDetailFragment = new MyDetailFragment();
Bundle bundle = new Bundle();
bundle.putString("KEY_DETAIL", clickedDetail);
myDetailFragment.setArguments(bundle);
FragmentTransaction fragmentTransaction =
getActivity().getFragmentManager().beginTransaction();
fragmentTransaction.replace(R.id.phone_container, myDetailFragment);

/*
* Add this transaction to the back stack.
* This means that the transaction will be remembered after it is
* committed, and will reverse its operation when later popped off
* the stack.
*/
fragmentTransaction.addToBackStack(null);

fragmentTransaction.commit();

//getActivity().getActionBar().setDisplayHomeAsUpEnabled(true);

}else{
/*
* Activity have two fragments. Pass data between fragments
* via reference to fragment
*/

//get reference to MyDetailFragment
MyDetailFragment myDetailFragment =
(MyDetailFragment)getFragmentManager().findFragmentById(R.id.detail_fragment);
myDetailFragment.updateDetail(clickedDetail);

}
}

}

public static class MyDetailFragment extends Fragment {

TextView textDetail;

@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
// TODO Auto-generated method stub
View view = inflater.inflate(R.layout.layout_detailfragment, null);
textDetail = (TextView)view.findViewById(R.id.text_detail);

Bundle bundle = getArguments();
if(bundle != null){
String detail = bundle.getString("KEY_DETAIL", "no argument pass");
textDetail.setText(detail);
}

return view;
}

public void updateDetail(String detail) {
textDetail.setText(detail);
}

}

@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

View v = findViewById(R.id.phone_container);
if(v == null){
//it's run on tablet
isSinglePane = false;
/*
* MyListFragment and MyDetailFragment have been loaded in XML,
* no need load.
*/

}else{
//it's run on phone
//Load MyListFragment programmatically
isSinglePane = true;

if(savedInstanceState == null){
//if's the first time created
MyListFragment myListFragment = new MyListFragment();
FragmentTransaction fragmentTransaction = getFragmentManager().beginTransaction();
fragmentTransaction.add(R.id.phone_container, myListFragment);
fragmentTransaction.commit();
}
}

getFragmentManager().addOnBackStackChangedListener(this);
}

@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case android.R.id.home:
getFragmentManager().popBackStack();
//getActionBar().setDisplayHomeAsUpEnabled(false);
return true;
}

return super.onOptionsItemSelected(item);
}

final static String KEY_DISPLAY_OPT = "KEY_Display_Option";

@Override
protected void onSaveInstanceState(Bundle outState) {
// TODO Auto-generated method stub
super.onSaveInstanceState(outState);
outState.putInt(KEY_DISPLAY_OPT, getActionBar().getDisplayOptions());
}

@Override
protected void onRestoreInstanceState(Bundle savedInstanceState) {
// TODO Auto-generated method stub
super.onRestoreInstanceState(savedInstanceState);
int savedDisplayOpt = savedInstanceState.getInt(KEY_DISPLAY_OPT);
if(savedDisplayOpt != 0){
getActionBar().setDisplayOptions(savedDisplayOpt);
}
}

@Override
public void onBackStackChanged() {
int backStackEntryCount = getFragmentManager().getBackStackEntryCount();
if(backStackEntryCount > 0){
getActionBar().setDisplayHomeAsUpEnabled(true);
}else{
getActionBar().setDisplayHomeAsUpEnabled(false);
}
}

}


download filesDownload the files.

Next:
- Implement animation in FragmentTransaction
