Create scaled bitmap using Matrix

08:12
Example to create scaled bitmap using Matrix.postScale() method. Refer to scaleBitmap() method in the code.

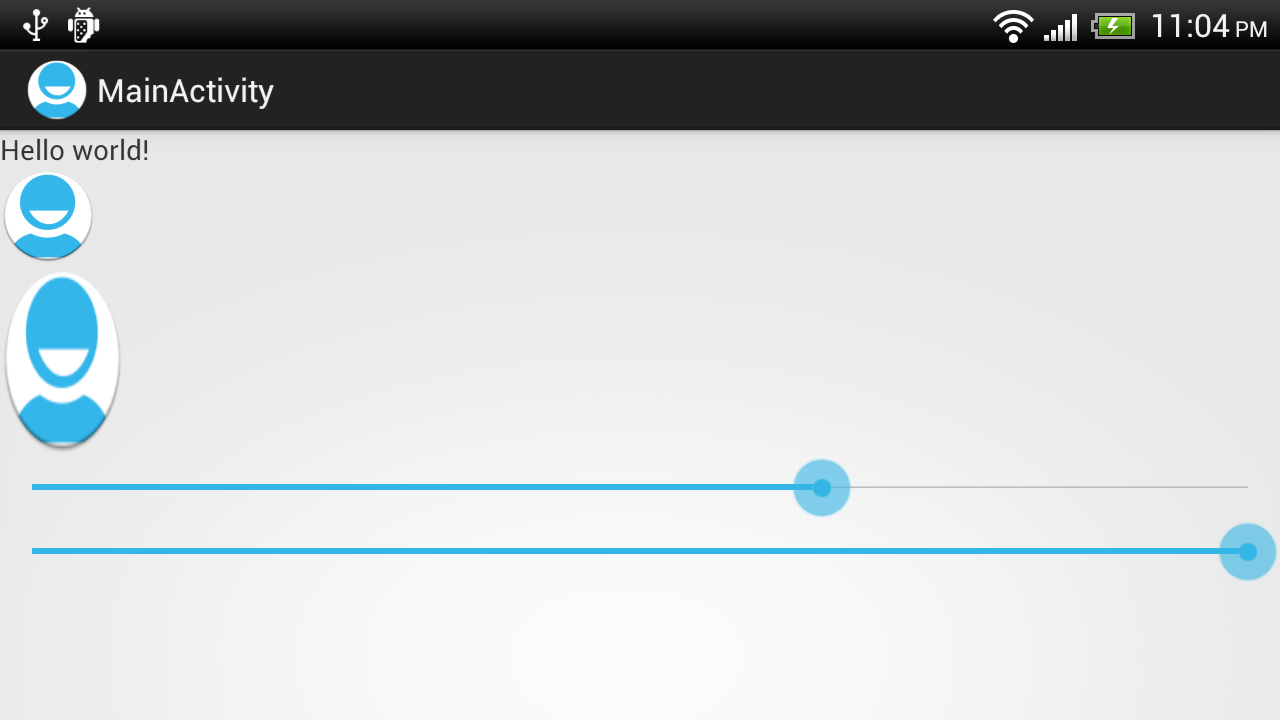

Create scaled bitmap using Matrix

package com.example.androidmatrix;

import android.os.Bundle;
import android.app.Activity;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Matrix;
import android.widget.ImageView;
import android.widget.SeekBar;
import android.widget.SeekBar.OnSeekBarChangeListener;

public class MainActivity extends Activity {

ImageView imageSource, imageTarget;
Bitmap bitmapSource;

SeekBar xBar, yBar;

@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);

imageSource = (ImageView)findViewById(R.id.source);
imageTarget = (ImageView)findViewById(R.id.target);
xBar = (SeekBar)findViewById(R.id.xbar);
yBar = (SeekBar)findViewById(R.id.ybar);

bitmapSource = BitmapFactory.decodeResource(getResources(), R.drawable.ic_launcher);
imageSource.setImageBitmap(bitmapSource);

xBar.setOnSeekBarChangeListener(xyBarChangeListener);
yBar.setOnSeekBarChangeListener(xyBarChangeListener);

Bitmap nBM = scaleBitmap(bitmapSource, 1.0f, 1.0f);
imageTarget.setImageBitmap(nBM);
}

OnSeekBarChangeListener xyBarChangeListener
= new OnSeekBarChangeListener(){

@Override
public void onProgressChanged(SeekBar seekBar, int progress,
boolean fromUser) {
float xscale = (float)(xBar.getProgress())/200;
float yscale = (float)(yBar.getProgress())/200;
imageTarget.setImageBitmap(scaleBitmap(bitmapSource, xscale, yscale));
}

@Override
public void onStartTrackingTouch(SeekBar seekBar) {
// TODO Auto-generated method stub

}

@Override
public void onStopTrackingTouch(SeekBar seekBar) {
// TODO Auto-generated method stub

}};

private Bitmap scaleBitmap(Bitmap src, float xScale, float yScale){
Matrix matrix = new Matrix();
matrix.postScale(xScale, yScale);
Bitmap scaledBitmap = Bitmap.createBitmap(
bitmapSource,
0,
0,
src.getWidth(),
src.getHeight(),
matrix,
true);

return scaledBitmap;
}

}


<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical">

<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/hello_world"
tools:context=".MainActivity" />
<ImageView
android:id="@+id/source"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
<ImageView
android:id="@+id/target"
android:layout_width="wrap_content"
android:layout_height="wrap_content"/>
<SeekBar
android:id="@+id/xbar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:max="400"
android:progress="100"/>
<SeekBar
android:id="@+id/ybar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:max="400"
android:progress="100"/>

</LinearLayout>


download filesDownload the files.
